Optimizing Sponsored Search Ranking Strategy By Deep Reinforcement Learning

ABSTRACT

Sponsored search is an indispensable business model and a major revenue contributor of almost all the search engines. From the advertisers’ side, participating in ranking the search results by paying for the sponsored search advertisement to aract more awareness and purchase facilitates their commercial goal. From the users’ side, presenting personalized advertisement reecting their propensity would make their online search experience more satisfactory. Sponsored search platforms rank the advertisements by a ranking function to determine the list of advertisements to show and the charging price for the advertisers. Hence, it is crucial to nd a good ranking function which can simultaneously satisfy the platform, the users and the advertisers. Moreover, advertisements showing positions under dierent queries from dierent users may associate with advertisement candidates of dierent bid price distributions and click probability distributions, which requires the ranking functions to be optimized adaptively to the trac characteristics. In this work, we proposed a generic framework to optimize the ranking functions by deep reinforcement learning methods. e framework is composed of two parts: an oine learning part which initializes the ranking functions by learning from a simulated advertising environment, allowing adequate exploration of the ranking function parameter space without hurting the performance of the commercial platform. An online learning part which further optimizes the ranking functions by adapting to the online data distribution. Experimental results on a large-scale sponsored search platform conrm the eectiveness of the proposed method.

KEYWORDS

Sponsored search, ranking strategy, reinforcement learning

1 INTRODUCTION

Sponsored search is a multi-billion dollar business model which has been widely used in the industrial area [5, 11]. In the commonly employed pay-per-click model, advertisers are charged for users’ clicks on their advertisements. e sponsored search platform ranks the advertisements by a ranking function and select the top ranked ones to present to the users. e price charged from the advertisers of these presented advertisements is computed by the generalized

second price (GSP) auction mechanism [8, 24] as the smallest price which is sucient to maintain their allocated advertisement showing positions. Traditionally, the ranking score of an advertisement is set to be its expected revenue to the sponsored search platform, computed as the product between the advertisers bid price and the predicted click-through rate (CTR) of the user. expected revenue based ranking function dominates the sponsored search area, and most of the existing methods focus on designing elaborate models to predict the CTR [11, 16, 20, 39]. In this work, instead of designing a CTR prediction model, we try an alternative way to add more exibility in the ranking function for balancing the gain between users, advertisers and our advertisement platform. For the user experience, we recognize the engagement of users as their CTR on the advertisements and a term is added to the ranking function which are monotonic of the users’ CTR. To improve the advertisers’ return on their spending, we add a term related to the users’ expected purchase amount. e ranking function is then computed as the weighted sum of the two terms together with the expected revenue term.

Although the ranking function can well represent the benets of the platform, user and advertisers, it may not be directly related to the benets of these players. First of all, owing to the second price auction mechanism [8], the advertisers are charged by the minimum amount of dollars they need to keep their advertisement position, not the amount of money they bid. e price is determined by the competitiveness of the underlying advertisement candidates. Second, the CTR and CVR (i.e., conversion rate, the ratio of buying behavior aer each advertisement click) are predicted by a prediction model, which is generally biased and prone to noise because of being training on a biased distributed dataset [12]. To link the real world benets of the users, advertisers and platform directly to the ranking function, we propose a reinforcement learning framework to learn the ranking functions based on the observed gain in a ‘trailand-error’ manner. By treating the ranking function parameter tuning as a machine learning problem, we are able to deal with more complex problems including higher parameter space and traf c characteristic based tuning. Advertisement showing positions associated with dierent queries and dierent users exhibit diverse characteristics in terms of distribution of bid price and CTR/CVR. Tuning the parameters according to trac characteristics would denitely improve the performance of the ranking function.

e reinforcement learning [33] is generally used in sequential decision making, which follows an explore and exploit strategy to optimize the control functions of the agents. Starting from its proposal, it is mostly used in games and robotics applications [18, 23, 30] where the exploration can be done in a simulated or

articial environment. When utilizing the algorithms in advertising platforms, we need to consider the cost for the exploration and try to perform exploration in a simulated environment. However, dierent from the games, simulating the advertisement serving and rewards (click, user purchase, etc.) is hard due to the large space of controlling factors like user intention, trac distribution changes, advertisers budget limitation etc. In this work, we build a simulated sponsored search environment by making the historical advertisement serving replayable. Specically, the simulated environment is composed of an advertisement replay dataset (state in the terminology of reinforcement learning), which for each advertisement showing chance, stores the full list of advertisement candidates together with their predicted CTR, CVR and the advertisers’ bidding prices, and a set of ‘virtual’ exploration agents which simulate the advertisement results and users’ response under dierent ranking functions (i.e., actions in reinforcement learning terminology). e reward for the exploration is computed by reward shaping methods [26].

However, there are two problems with the simulated environment: (1) the simulated state-action-reward tuple is temporally independent: it is hard to simulate the temporal correlation between the response of a user on one advertisement and the response on the next presented advertisement; (2) the simulated response is inconsistent with online user response to some extent. To solve problem (1), we employ an o-policy reinforcement learning architecture [19] to optimize the advertisement ranking function, which does not require the observation of the next states’ action and reward. For problem (2), we use an oine calibration method to adjust the simulated rewards according to the online observed reward. Moreover, aer the oine reinforcement learning, we employ an online learning module to further tune the reinforcement learning model to beer t the real-time market dynamics.

Contributions. In this work, we present our work of optimizing the advertisement ranking functions on a popular mobile sponsored search platform. e platform shows the search results to users in a streaming fashion, and the advertisements are plugged in xed positions within the streaming contents. Our main contributions are summarized as follows:

• We introduce a new advertisement ranking strategy which involves more business factors like the user engagement and advertiser return, and a reinforcement learning framework to optimize the parameters of the new ranking function;
• We propose to initialize the ranking function by conducting reinforcement learning in a simulated sponsored search environment. In this way, the reinforcement learning can explore adequately without hurting the performance of the commercial platform;
• We further present an online learning module to optimize the ranking function adaptively to online data distribution.

2 RELATED WORKS

Auction mechanisms have been widely used in Internet companies like Google, Yahoo [8] and Facebook [34] to allocate the advertisement showing positions for the advertisers. e Internet advertising auction generally works in the following procedure: an advertiser

submit a bid price stating their willingness to pay for an advertisement response (click for a performance-based campaign, view for a branding campaign, etc.) e publisher ranks the advertisements according to their quality scores and bid prices, and presents the top ranked ones to the users together with the organic contents. e advertisers are then charged, for the response of the users, the minimum amount of dollars to keep the showing positions of their advertisements. e auction mechanism has been extensively studied in the literature both theoretically and empirically: Bejamin et al. in [8] investigate the properties of generalized second price (GSP) and compare it with the VCG [34] mechanism in terms of the equilibrium behavior. In [21], the authors formulate the advertisement allocation problem as a matching problem with budget constraints, and provide theoretical proof that the algorithm can achieve a higher competitive ratio than the greedy algorithm. To solve the ineectiveness in next-price auction, the authors in [1] designs a truth-telling keyword auction mechanism. In [24] followed by [9], the reserved price problem is studied, including its welfare eects and its relation to equilibrium selection criteria. A eld analysis on seing reserve prices in sponsored search platforms of Internet companies is presented in [27]. Existing work generally focuses on the revenue eect of the auction mechanism to make it ecient in the bidding process and capable of proting more revenue. In our work, we use the generalized second price (GSP) auction for pricing. But since we are working on an industrial sponsored search platform, in consideration of long term return, instead of maximizing the platform revenue only, we also add the user experience and advertiser utility terms into the ranking function.

Reinforcement learning problem is basically modeled as a Markov Decision Process [33], which concerns with how agents adjust their policy to interact with the environment so as to maximize certain cumulative rewards. Recently, with the combination of deep neural network [14], the reinforcement learning methods are able to work in the environment with high-dimensional observations by feeding large-scale experience data and training with powerful computational machines [18], and make breakthrough in many dierent areas including game of Go [30], video games [22, 38], natural language processing systems [32, 37] and robotics [15, 29]. However, most of the existing applications are conducted on simulated non-protable platforms, where the experience data are easy to acquire and there is no restrict to try any agent policies and training schemes. In a commercial system, however, the exploration of the reinforcement learning may bring in uncertainty in the platform’s behavior, prone to loss of revenue, thus oine methods are a practical solution [40]. In [17], Li and Lipton et al. design a user simulator under movie booking scenario. e simulator is designed on some rules and data observations. However, in our platform, there are far more factors (users, advertisers) to simulate. For online advertising with reinforcement learning, the authors in [2] rst propose to tune sponsored search keyword bid price in an MDP framework, where the state space is represented by the auction information, the advertisement campaign’s remaining budgets and life-time, while the actions refer to the bid price to set. en in [4], the authors formulate the sequential bid decision making process in the real-time bidding display advertising as a reinforcement learning problem. e method is based on assumptions that the winning rate depends only on the bid price and the actual clicks

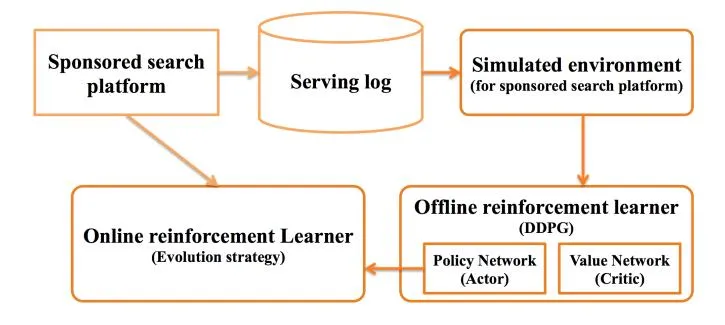

Figure 1: System flow chart.

can be well estimated by the predicted CTR. Hence, enabling the best bidding strategy can be computed in an offline fashion. In our work, we initialize the reinforcement learning model using the offline simulated data, and combine the reward shaping method and online model update procedure to make the model consistent with the online data distribution.

3 SYSTEM OVERVIEW

As shown in Fig. 1 (highlighted in orange), the whole system is composed of three modules: the offline sponsored search environment simulation module, the offline reinforcement learning module and the online reinforcement learning module. The environment simulation module is used to simulate the effect caused by changing the ranking function parameters, including re-ranking the advertisement candidates, showing the new top-ranked advertisement, and generating the users’ response with respect to such changes. To allow adequate exploration, the offline reinforcement learning module collects training data by deploying randomly generated ranking functions on the simulated environment. An actor-critic deep reinforcement learner [19] is then trained on top of these training data. To bridge the gap between the offline simulated data and the online user-advertiser-platform interaction, we build an online learning module to update the model by the online serving results.

3.1 Ranking Strategy Formulation

We use the following ranking function to compute the rank score for advertisement ad

$\phi(s, a, ad) = \underbrace{f_{a_1}(CTR) \cdot bid}_{\text{platform}} + a_2 \cdot \underbrace{f_{a_3}(CTR, CVR)}_{\text{user}} + a_4 \cdot \underbrace{f_{a_5}(CVR, price)}_{\text{advertiser}}$

$(1)$

where s represents the search context including the search query, user demographic information and status of advertisement candidates for the advertisement showing chance. bid and price are the bid price and product price set by the advertiser for the advertisement ad on the current query. CTR and CVR of ad are predicted by the platform. $f_{a_i}$ ( $i \in \{1,3,5\}$ ) performs nonlinear monotonic projection on CTR and CVR, and scalar $a_2$ , $a_3$ are used to balance the weights between the three terms. Because our sponsored search platform charges the advertisers by ‘click’, the first term $f_{a_1}(CTR) \cdot bid$ can be seen as the expected revenue of the

platform. We refer the users’ preference to the presented advertisements as their response ratio (CTR and CVR). Hence, the second term indicates the engagement of the users. The third term computes the expected return (expected user purchase amount) of the advertiser by showing the advertisement, which measures the gain of the advertisers. According to the GSP rule, if the advertisement ad is shown, its advertiser is charged

click\_price = \frac{\phi(s, a, ad') - \left(a_2 \cdot f_{a_3}(CTR, CVR) + a_4 \cdot f_{a_5}(CVR, price)\right)}{f_{a_1}(CTR)} \tag{2}

where ad’ is the advertisement just ranked below ad. However, there is possibility that the numerator is a negative value. In our implementation, we solve this problem by imposing a lower bound on the $click\_price$ , just like the reserve price [27], and since the platform revenue is always one of the optimization goal, the numerator is rarely negative in the experiments. Compared with the ranking function proposed in [13], which is generally used by Google and Yahoo, our ranking function (1) involves more parameters and commercial factors to consider, which can be used to optimize for more comprehensive commercial goals.

The ranking function is parameterized by a in consideration of the following issues: first, the predicted CTR and CVR are generally biased due to the imbalance training data, and need to be calibrated to make it consistent with the online user response; second, we charge the advertisers according to second price auction mechanism, which is lower than the bid price and computed according to the next ranked advertisement; third, the three terms may not be the same in numeric scale. The ranking function optimization problem can be formulated as to predict the best parameter a given the search context s as

\pi(s) = \arg\max_{a} R(\phi(s, a)) \tag{3}

where $R(\phi(s, a))$ is the reward given the ranking function $\phi(s, a)$ . The reward can be defined as the sum of purchase amount, number of click and platform revenue or any weighted combinations of the three terms during a certain period after the ranking function is operated, depending on the platform performance goal. Since in the reinforcement literature, a is used to represent the action of the learning agent, we take this notation to align with the literature.

3.2 Long-term Reward Oriented Ranking Function Optimization

Reinforcement learning methods are designed to solve the sequential decision making problem, in order to maximize a cumulative reward. In the literature, it is generally formulated as optimizing a Markov decision process (MDP) which is composed of: a state space S, an action space S, a reward space S with a reward function $S: S \times S \to S$ and a stationary transition dynamic distribution with conditional density $p(s_{t+1}|s_t,a_t)$ which satisfies Markov property $p(s_{t+1}|s_1,a_1,...,s_t,a_t) = p(s_{t+1}|s_t,a_t)$ for any state-action transition process $S_1,a_1,...,S_t,a_t$ . The action decision is made through a policy function $T_S \to S \to S$ parameterized by S. The reinforcement learning agent interacts with the environment according to $T_S \to S$ giving rise to a state-action transition process $T_S \to S$ , $T_S \to S$ , and the goal of the learning agent is to find a $T_S \to S$ which maximizes the expected discounted cumulative reward

$r^{\gamma} = \sum_{s_0 \sim p_0(s_0)} \sum_{k=0}^{\infty} \gamma^k \cdot R(s_k, a_k)$ where $0 < \gamma < 1$ and $p_0(s_0)$ represents the initial state distribution.

The ranking function learning of a sponsored search platform has many special characteristics making it suitable to be formulated under the reinforcement learning framework. First of all, during one user-search session, the sponsored search platform sequentially makes decisions on choosing ranking functions to presenting advertisements for the user. Second, during the interaction with users, the platform collects users’ response as rewards and balances between the exploration and exploitation to maximize the long term cumulative rewards. Third, since the data distribution chances during the time, it requires online learning for adaptation. In this work, we choose the reinforcement learning methodology to learn the ranking function in Eq. (3) for continuously improving the long term rewards. Specifically, in our scenario, the state s is defined as the search context of a user query including the query terms, query categories, user demographic information and online behavior. The sponsored search platform (i.e., reinforcement learning agent in our scenario) uses the ranking function as an action a to rank the advertisements and interacts with a user to get the reward r = R(s, a) as the combination of platform revenue, user engagement (quantified as user click, purchase, etc.) and advertiser’s sale amount. Then the environment transits to the next state s’. The reinforcement learning method optimizes the ranking function parameters through exploring and exploiting on the observed state-action-reward-state (s, a, r, s’) tuples.

4 METHOD

In the following sections, we will introduce the detail algorithms of the three modules in Fig. 1.

4.1 Environment Simulation Module

On one hand, the performance of the reinforcement learning is guaranteed by adequate exploration; on the other hand, the exploration may bring uncertainty in the ranking functions’ behavior and have performance cost. Since the algorithm is designed to run on a commercial sponsored search platform, we minimize the exploration cost by building a simulated sponsored search environment to training the reinforcement learning model in an offline manner.

The sponsored search procedure is effected by many factors including the advertisers’ budgets and bidding prices, the users’ propensity and intention, making the procedure hard to simulate from scratch. In this work, instead of generating the whole sponsored search procedure, we propose to do the simulation by replaying the existing advertisement serving processes and make them adjustable in terms of ranking function setting. Given a user query, the platform proceeds by retrieving a big set of advertisements according to semantic matching criterion, predicting the CTR and CVR for these advertisements, and computing the rank scores of them for advertisement selection and click price estimation. To make the advertisement ranking process replayable, for each advertisement showing chance, we store the bidding information and predicted CTR, CVR of all the associated advertisement candidates. According to Eqs.(1) and (2), the ranking orders and click prices for these advertisement candidates can be computed out of these replay information. The reward for showing an advertisement is

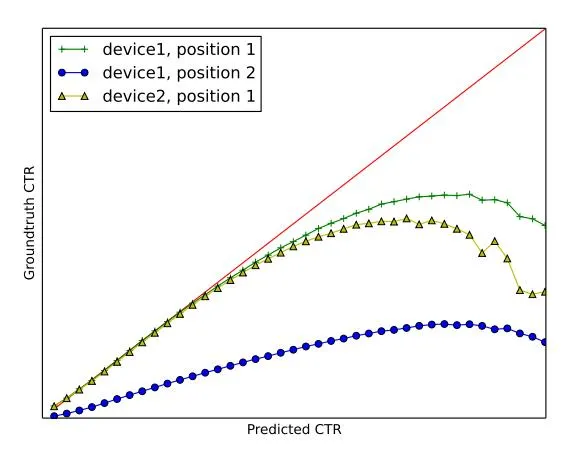

Figure 2: Illustration of the difference between the predicted CTR and the groundtruth value on two types of devices and two showing positions.

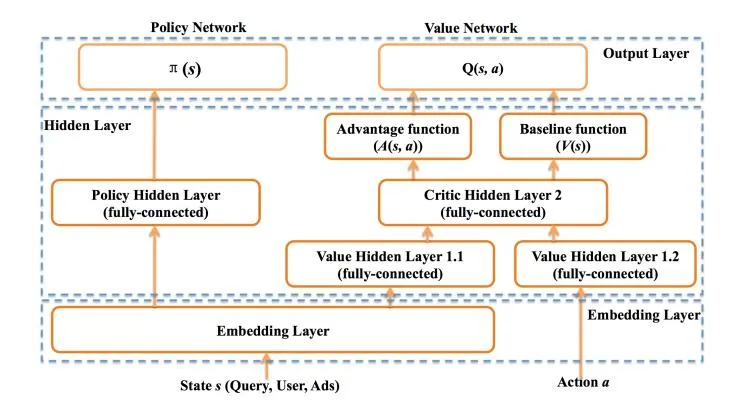

Figure 3: Illustration of the Actor and Critic network architectures used in our work.

simulated by the reward shaping approach [26] as the user response (like clicking the advertisement or purchasing the product). For example, if our goal is to get more platform revenue and user clicks, the intermediate reward can be computed as

r(s_t, a_t) = CTR \cdot click\_price + \delta \cdot CTR \tag{4}

where $\delta$ is a manually tunable parameter to balance between the expectation of more user engagement (click behavior) or more platform revenue. To the best of our knowledge, most of the prediction algorithms concentrate on ordering the response rate of the advertisement instead of predicting the true value, and are trained on the biased data [12]. As a result, there is a gap between the ground truth user response rates and the predict ones. To guarantee the reinforcement learning method optimize towards the right direction, we minimize the gap by CTR and CVR calibration.

4.1.1 Reward Calibration. In Fig. 2, we illustrate the difference between the predicted CTR and groundtruth CTR on different device types and different advertisement showing positions. The advertisement showing chances (impressions) are grouped into bins

by discretizing their predicted CTR values, and the groundtruth CTR of a bin is computed as the number of clicks achieved by the impressions in this bin divided by the number of impressions. It can be seen that, the predicted CTR and the groundtruth CTR exhibit diverse mapping relations on different context (e.g. device type, location). We manually select some context features which effect the mapping relations most, and calibrate the predicted CTR as

\Gamma(CTR, \mathcal{F}) = \overline{CTR} \tag{5}

where $\mathcal{F}$ refers to the manually selected feature fields like time and device type, $\overline{CTR}$ is the averaged ground truth CTR. To maintain the ordering relations of the predicted CTR on the set of advertisements, we employ the Isotonic regression method [3] to compute the calibrated values for each < CTR, $\mathcal{F}$ > combinations. The method can automatically divide the CTR values into bins, targeting at minimizing the least square error between the predicted CTRs and the calibrated ones. By grouping the advertisement showing results into bins according to the binned CTR values, the ground truth $\overline{CTR}$ for a bin is computed as the number of observed clicks in this bin divided by the number of presented advertisements. CVR is calibrated in the same way.

4.2 Offline Reinforcement Learning for Ranking Function Initialization

In this section, we will introduce the reinforcement learning problem formulation, the model architecture and the training method based on the simulated environment introduced above. Regarding to the MDP representation in Section 3.2, for each advertisement showing chance, we define the state $s_t$ as the search context composed of three types of features: (1) query related features like query ID, query category ID; (2) user demographic and behavior features including age, gender and aggregated click number on certain advertisement; (3) advertisement related features, e.g. advertisement position. The action $a_t$ is the ranking function parameter vector a in Eq. (1), and reward is defined as Eq. (4). Since user intention is difficult to model correctly, it is hard to predict whether a user would switch to another specific query after seeing current advertisement. Thus we focus on the state transitions in each search session and omit the inter-session ones. To generate the next state $s_{t+1}$ , we make simplification by assuming there is no change in query related features. The user behavior features are updated by adding the expected behavior calculated out of the predicted CTR and CVR with calibration (refer to Section 4.1.1). For the advertisement related features, we assume the user are continuously reading the streaming contents and advertisements one by one, and the advertisement related features are updated accordingly.

Learning from the simulated environment introduced above gives rise to many special requirements for the learning algorithm. First of all, the simulation method above could only generate temporally independent state-action pairs, while lacking the capability of simulating the interaction between search sessions. This is because the state-action sequence of user-platform interaction is tangled. The current user behavior is correlated with the previously presented advertisements and occurred user responses. The temporal independency of the training data requires the reinforcement learning method to support off-policy learning [7]. Second, because the

action space $\mathcal{A}$ is continuous (refer to Eq. (3)), it is practical to define the deterministic policy function [31]. Moreover, the learning method should be capable of dealing with the complex mapping relation between action and rewards caused by the discontinuously distributed bid price. Taking these requirements into consideration, we use the Deep Deterministic Policy Gradient (DDPG) learning method in [19] as the learner to optimize our ranking function. The method supports off-policy learning, and combines the learning power of deep neural networks with the deterministic policy function property in Actor-Critic architecture.

The DDPG algorithm iterates between the value network (critic network) learning step and the policy network (actor network) learning step, the value network estimates the expectation of the discounted cumulative rewards from current time t as (an example reward function is shown in Eq. (4))

$Q_{\theta_Q}(s_t, a_t) = \mathbb{E}[r_t + \gamma \cdot r_{t+1} + \gamma^2 \cdot r_{t+2} + \dots | s_t, a_t]$ (6)

and the policy network calculates the best ranking function strategy given the current search context as

a_t = \pi_{\theta_{\pi}}(s_t) \ . \tag{7}

The parameter $\theta_Q$ and $\theta_\pi$ refer to the weights and bias terms in the deep networks.

4.2.1 DDPG Network Architecture. The architectures of the value network and policy networks in our DDPG based reinforcement learning model is shown in Fig. 3. Refer to Eqs. (6) and (7), both the two networks have the current state $s_t$ as input. We represent all the features of $s_t$ (refer to Section 4.2) as ID features, and use a shared embedding layer to convert each of these ID features into a fixed-length dense vector and concatenate them to form the feature representation of $s_t$ . The embedding vectors are initialized as random vectors and updated during the reinforcement learning process. For the policy network, we connect the embedding layer to a fully-connected hidden layer with the Exponential Linear Units (ELU) [6] as activation function. In the experiment, we find that when using activation functions like Sigmoid and ReLU, the output of nodes are easily move to numeric ranges with zero gradients, hindering the propagation of gradients along the network. By employing the ELU as activation function, the networks converge much faster. The hidden layer in the policy network is then concatenated to the output layer by a sigmoid activation function. We also use clip method as [23] to clip the output into a valid range to avoid over-learning.

For the value network, its inputs are composed of the state features $(s_t)$ and the action features (ranking function parameter vector $a_t$ ). Different from the state features, the action features are continuous. We connect them each to an independent fully-connected hidden layer with ELU as activation function. The two hidden layers are of the same number of nodes and are connected together to a higher level fully-connected hidden layer. In the output layer, we utilize a dueling network architecture [35] which divides the value function (Q(s,a)) in Eq. (6) into the sum of a state value function (V(s)) and a state-dependent action advantage function (A(s,a)), such that Q(s,a) = V(s) + A(s,a). According to the insight of [35], the dueling architecture makes the learning of the value network efficient by identifying the highly rewarded states and the states where the selected actions do not affect the rewards much. In

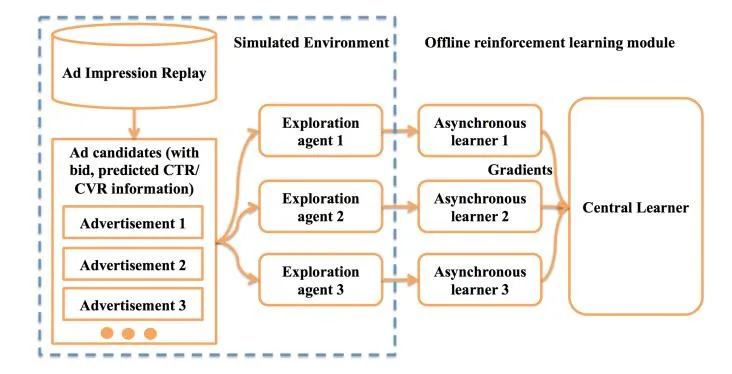

Figure 4: Illustration of the offline reinforcement learning framework.

our work, since our reward is defined on click prices (and product prices), it is highly varied for different states and discontinuous with the change of advertisement candidates ordering. The variance in the rewards poses a big challenge for learning a stable policy function. In our experiments (refer to Section 5.1 and Fig. 6), we observed that the dueling architecture makes the learning process converge more quickly. The observation coincides with the conclusion in [36]. Parameter setups of the network will be discussed in experiments.

4.2.2 Learning the Ranking Function from Simulated Environment. We employ the asynchronous training strategy [25] to train the DDPG model introduced above. As shown in Fig. 4, the training data is sampled by multiple independent exploration agents. These training agents interact with the simulated sponsored search environment (Section 4.1) by sampling the advertisement serving replay data, trying different ranking functions (actions a’s) on the sampled replay data, and collecting the simulated rewards (Section 4.1.1) and state transitions (Section 4.2) for these actions to build training tuples in the form $\langle s_t, a_t, r_t, s_{t+1} \rangle$ . The training tuples are then sent to local DDPG reinforcement learners to calculate the gradients of the value network parameters and policy network parameters and update these network parameters individually. The local learners also send their ‘local’ gradients to update the ‘global’ model parameters asynchronously. The algorithm is shown in Algorithm 1. To guarantee the independency and adequate exploration of the local reinforcement learners, we set the exploration agents to act by uniformly sampling from the ranking function parameter space.

In our implementation, we use a distributed computing platform with around 100 GPU machines, and 5 central parameter servers to store the global model parameters. For the distributed computing platform, each process maintains an asynchronous DDPG learner, an exploration agent and a local model (copied from the global model). After several rounds of gradients computation from the simulated training data, the gradients are sent asynchronously to the central parameter servers, and the updated model parameters are sent back to update the local learners’ copies.

Algorithm 1: Asynchronous DDPG Learning

Input: Simulated transition tuple set $\mathcal{T}$ in the form $\psi = \langle s_t, a_t, r_t, s_{t+1} \rangle$

Output: Strategy Network $\pi_{\theta_{\pi}}(s_t)$

• 1 Initialize critic network $Q_{\theta_Q}(s_t, a_t)$ with parameter $\theta_Q$ and actor network $\pi_{\theta_{\pi}}(s_t)$ with parameter $\theta_{\pi}$ ;
• 2 Initialize target network Q’, $\pi'$ with weights $\theta_{Q'} \leftarrow \theta_Q$ , $\theta_{\pi'} \leftarrow \theta_{\pi}$ ;

3 repeat

• 4 Update network parameters $\theta_Q$ , $\theta_{Q'}$ , $\theta_{\pi}$ and $\theta_{\pi'}$ from parameter server;
• Sampling subset $\Psi = \{\psi_1, \psi_2, ..., \psi_m\}$ from $\mathcal{T}$ ;
• For each $\psi_i$ , calculate $Q^* = r_t + \gamma \cdot Q'(s_{t+1}, \pi'(s_t))$ ;
• Calculate critic loss $L = \sum_{\psi_i \in \Psi} \frac{1}{2} \cdot (Q^* Q(s_t, a_t))^2$ ;
• 8 Compute gradients of Q with respect to $\theta_Q$ by $\nabla_{\theta_Q} Q = \frac{\partial L}{\partial \theta_Q}$ ;
• Compute gradients of $\pi$ with respect to $\theta_{\pi}$ by $\nabla_{\theta_{\pi}} \pi = \sum_{\psi_{i} \in \Psi} \frac{\partial Q(s_{t}, \pi(s_{t}))}{\partial \pi(s_{t})} \cdot \frac{\partial \pi(s_{t})}{\partial \theta_{\pi}} = \sum_{\psi_{i} \in \Psi} \frac{\partial A(s_{t}, \pi(s_{t}))}{\partial \pi(s_{t})} \cdot \frac{\partial \pi(s_{t})}{\partial \theta_{\pi}};$
• Send gradients $\nabla_{\theta_O} Q$ and $\nabla_{\theta_\pi} \pi$ to the parameter server;
• Update $\theta_Q$ and $\theta_\pi$ with $\nabla_{\theta_Q} Q$ and $\nabla_{\theta_\pi} \pi$ for each global N steps by gradients method;
• Update $\theta_{Q'}$ and $\theta_{\pi'}$ by $\theta_{Q'} \leftarrow \theta_{Q'} + (1 \tau)\theta_{Q}$ , $\theta_{\pi'} \leftarrow \theta_{\pi'} + (1 \tau)\theta_{\pi}$ ;
• 13 until Convergence;

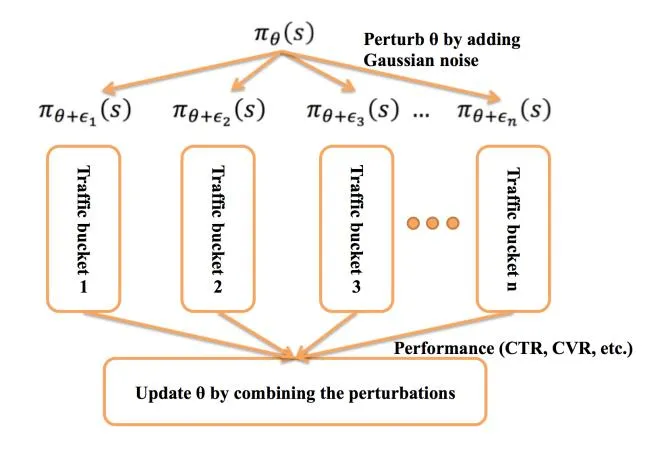

Figure 5: Illustration of the evolution strategy based online reinforcement learning method.

4.3 Online Reinforcement Learning for Ranking Function Updating

Despite the effort of reward calibration, the offline simulated environment is still inconsistent with the real online environment due to the dynamic data distribution and sequential correlation between the continuous user behavior. This inconsistency poses the online update requirement for the learned ranking function. However,

directly using the asynchronous training framework in Section 4.2.2 is not proper due to the speciality of the online updating: (1) the data distribution is different, where the online rewards are sparse and discrete (e.g. click or non-click, not the click expectation in simulated environment); (2) there are latency in reward collection, for instance, a user clicks an advertisement immediately, but the purchase behavior may be postponed for several days [?].

Regarding to these specialities, we introduce the evolution strategy [28] to update the parameters of the policy model. The evolution strategy based online updating method is illustrated in Fig. 5. We perform the following steps to online update the policy networks $\pi_{\theta_{-}}(s_t)$ : (i) stochastically perturb the parameters $\theta_{\pi}$ by a Gaussian noise generator with zero mean and variance $\sigma^2$ . Denote the set of n perturbed parameters as $\Theta_{\pi,\epsilon} = \{\theta_{\pi} + \epsilon_1, \theta_{\pi} + \epsilon_2, ..., \theta_{\pi} + \epsilon_n\}$ . (ii) Hash the the online traffic into bins according to dimensions like user ID and IP address. For each parameter $\theta_{\pi,i} \in \Theta_{\pi,\epsilon}$ , we deploy a policy network $\pi_{\theta_{\pi,i}}(s_t)$ on a traffic bin and get the reward according to Eq. (4) as the weighted sum of platform revenue and the click number in this bin $R_i = total\_click\_price + \lambda \cdot click\_number$ . However, in reality, the number of advertisement showing number should not be exactly the same for each bin. We compute the relative value of the reward by dividing it with the number of served advertisements as $\overline{R}_i = \frac{R_i}{served\_ad\_number}$ . (iii) Update the parameter $\theta_\pi$ by the weighted sum of the perturbations as

$\theta'_{\pi} = \theta_{\pi} + \eta \frac{1}{n\sigma} \sum_{i=1}^{n} \overline{R}_{i} \epsilon_{i}$ (8)

where $\eta$ is the learning rate. It should be noted that regard to the online stability, we only use a small percentage of traffic (totally 2% of the overall online traffic) for testing the performance of $\Theta_{\pi,\epsilon}$ .

The evolution strategy based method has several merits under our scenario. First of all, it is derivative-free. Since the rewards are discrete, it is hard to compute the gradient from the reward to the policy network parameters. Second, by fixing the seed of the random number generator, we just need to communicate the reward (a scalar) between the policy networks in local traffic bins and the central parameter servers. Thirdly, the method does not have intermediate reward requirement due to the homogeneity of these online traffic bins. Thus it can be deployed to optimize conversion related performance.

5 EXPERIMENTAL RESULTS

We conduct experiments on a popular commercial mobile sponsored search platform which serves hundreds of millions of active users monthly covering a wide range of search categories. To fully study the effectiveness of the proposed ranking function learning method, both analytical experiments on offline data and empirical experiments by deploying the learned ranking functions online are carried out. On the platform, the search results are presented in a streaming fashion, and the advertisements are allowed to be shown on fixed positions within the streamed content. Since the search results are tangled with the advertisements, besides the platform revenue, one important issue we need to deal with is the user experience. In the experiments, we design the immediate reward r as

click\_price \cdot is\_click + \lambda \cdot is\_click \tag{9}

where $click\_price$ is the amount we charge the advertisers according to generalized second price auction, and $is\_click$ is a binary number indicating whether the advertisement is clicked (1) or not (0). $\lambda$ is manually set according to the average $click\_price$ to balance between the platform revenue goal and the user experience goal. We can also add the advertisers’ satisfactory term like purchase price. But because we test our model on a small percentage of traffic online (2% traffic), the purchase amount is highly varied according to our observation. In the current experiments, we do not show the purchase optimized results and leave it as a future work when we ramp up our test traffic amount.

5.1 Experiments on Offline Data

Since we are learning on a biased sampled data, the mapping relation between the reward and ranking function parameters is complex due to the highly varied distribution of bidding price. The convergence property of the proposed method is worthy of studying. In the offline experiments, we study the convergence property of the proposed method and the effect of using different architectures and different super parameters on the speed of convergence. We employ an analytical method to verify whether the proposed method can converge to the ‘right’ ranking function. In the experiment, a simple state representation (only query + advertisement position) is utilized such that from the simulated data, it is computational feasible to perform brute force search to find the best parameters of the ranking function (refer to Eq. (1)). The brute force method proceeds by uniformly sampling the parameters in $\theta$ at a fixed step size for each replay sample, computing the rewards (refer Eq. (9)) based on the method in Section 4.2.2, and finding the best parameter $\theta^*$ from these samples according to the aggregated rewards. For training the reinforcement learning model, we encode both the query IDs and advertisement position IDs into 8-dimension embedding vectors. As a result, our embedding layer consists of a 16-dimension feature vector. For the critic hidden layer, we utilize two full-connection units, each of which has 500 nodes, and ELU [6] as the activation function. We use the same settings for the actor hidden layer except using 100 nodes in each layer. The learning rate for network parameter, target network parameter and regularization loss penalty factor are set to be 1.0e-5, 0.01 and 1.0e-5 respectively. The $\lambda$ is set to be the average of the click_price calculated out of the data log. Experimental results are presented in Fig. 6. The performance of the proposed method is measured by the squared error between the learnt ranking function parameters and the ‘best’ parameters found by brute force method. From the results, we can see, the proposed method could converge gradually to the best ranking function as the training process goes on.

We also evaluate the performance improvement brought by the dueling architecture in Fig. 6. Comparing the results of using the dueling architecture (annotated by ‘dueling’ in the figure) and not (‘without dueling’), it can be seen that, the dueling architecture improve the convergence speed dramatically. The intuition behind the results is the dueling architecture could help remove the reward variance of the same action under different states by V(s), and guide the action-value network A(s,a) to focus more on differentiating between different actions. As a result, the policy network learning is accelerated. In Fig. 7, we evaluate the influences of different

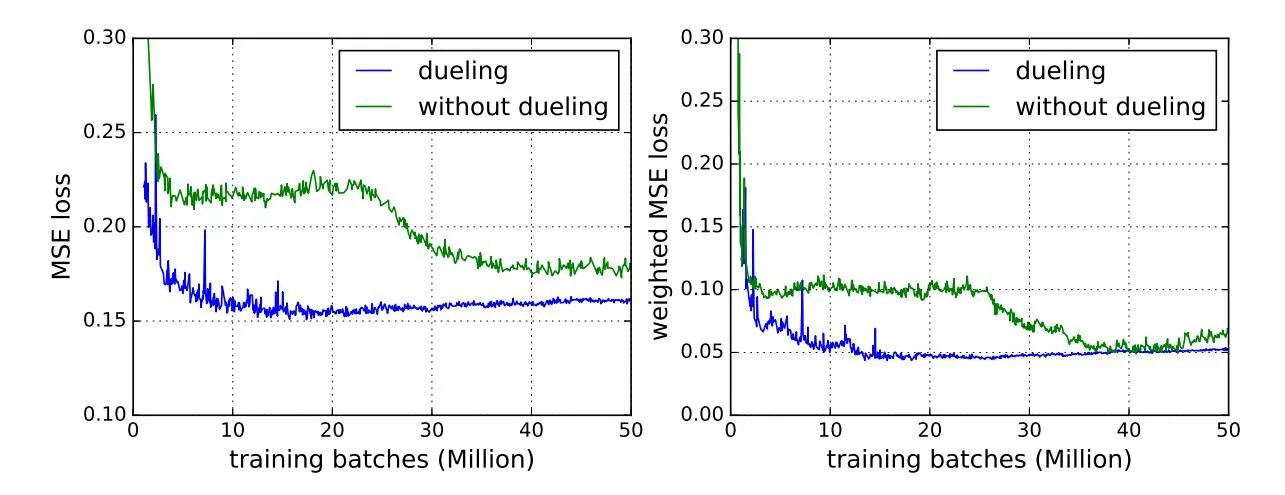

Figure 6: Comparison of the convergence speed of training by utilizing dierent network architectures. (1) Averaged squared error dierence between strategy parameters of DDPG and the searched results; (2) advertisement impression weighted squared error dierence between strategy parameters of DDPG and the searched results. ‘dueling’ is the trained result using the dueling network structure and ‘without dueling’ is the result without using the dueling network structure.

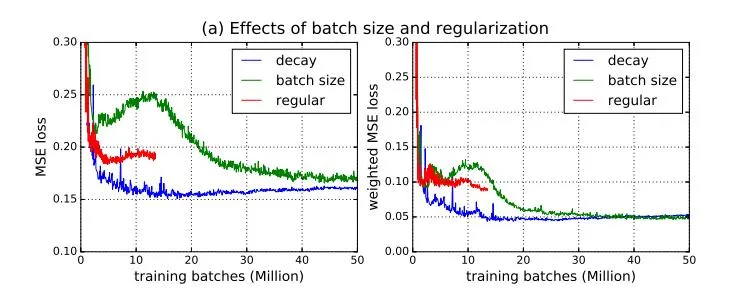

Figure 7: Comparison of the convergence speed of training by using dierent hyperparameters. e hyperparameter description is shown in Table 1.

Table 1: Hyperparameter setup of Fig. 7.

ID	Learning rate	Regularization	Batch size
base	1.0e-5	1.0e-5	50k
learning rate	1.0e-4	1.0e-5	50k
batch size	1.0e-5	1.0e-5	10k
regular	1.0e-5	1.0e-3	50k

super parameters for training the model, including the learning rate, regularization penalties and batch sizes. e parameter setup is listed in Table 1. As can be observed, lower learning rate (‘base’ and ‘learning rate’) makes the learning method converge more smoothly and larger batch size (‘base’ and ‘batch size’) and lower regularization penalty (see ‘base’ and ‘regular’) make the learning method converge more closely to the optimal solution. is is because there is strong variance in the rewards. Lower learning rate and larger batch size helps to reduce the variance in the batched training data, and lower regularization penalty allows a larger searching space for variables.

5.2 Online Serving Experiments

In this section, we present the experimental results of conducting a bucket experiment on a popular sponsored search platform. e sponsored search platform charge the advertisers for the click on their advertisements according to GSP auction mechanism. We split a small percentage (about 2%) of trac from the whole online trac by hashing the user IDs, IP addresses, etc., and deploy the learned ranking function online for advertisement selection and pricing. e following business metric are measured to see the improvement brought by the proposed method. (1) Revenue-Per-Mille (RPM): the revenue generated per thousand impressions; (2) Price-Per-Click (PPC): the average price per-click determined by the auction; (3) Click-through-rate (CTR). We employ the three business metrics because we are optimizing towards the platform revenue and user experience as in Eq. (9). RPM is determined by the product of CTR and PPC. From the change of CTR and PPC, we can also induce the improvements of the advertisers’ saling eciency, i.e. increase in CTR and decrease in PPC means the advertisers can aract more customers by less spending on advertisement serving.

In this work, a new ranking function is proposed by adding the terms reecting the user engagement and the advertisers’ gain, and a reinforcement learning method is presented for learning the optimal parameter of this term. In the online experiments, we want to verify the performance improvement brought by the new ranking function and the improvement from the reinforcement learning method. To evaluate the eectiveness of the new ranking function, we compare the proposed ranking function with the one proposed by Lahaie and McAfee [13]. e ranking function in [13] has been employed by many companies and proved to be ecient in online advertising auctions. In the experiment, we use this ranking function as the baseline and set its parameter (the exponential term) by brute force searching in the same manner as Section 5.1. For the proposed method, we use both the ranking functions learned by the brute force method in Section 5.1 and the ranking function

Table 2: Experimental results comparing the performance of the ranking function in [13], the brute force searched ranking function in Section 5.1 and the one learned by reinforcement learning method in Section 4.2.2.

Metrics (%)	$\Delta_{rpm}$	$\Delta_{ctr}$	$\Delta_{ppc}$
McAfee [13]	0.00	0.00	0.00
brute force	2.55	1.12	1.45
offline learning	2.52	2.08	0.26

learned by the reinforcement learning method. The comparison results on two continuous days’ data are shown in Table 2. As is observed, compared to the method [13], our ranking function with parameters searched by brute force method is capable of devlivering 2.5% of RPM growth with 1.1% of CTR increase and 1.4% of PPC increase. This observation confirms the effectiveness of the proposed ranking function in improving the platform’s performance. For the ranking function learned by reinforcement learning method, we observe a 2.5% RPM growth which is arisen majorly from the CTR increase (2.0% of CTR gain). We interpret the difference between the reinforcement learning method and ‘brute force’ method by the fact that the reinforcement learning method dose not converge to the exact value of brute force method, and it use a more elaborate set of features for learning. From the business side, we can find that the new ranking function can improve more user engagement by attracting more user clickness on the presented advertisements. For the platform, the increase of RPM brings in more efficiency in earn platform profit, and for the advertisers, the RPM growth is driven by the CTR increase while there is a little increase in PPC (for the learned ranking function), this means, the advertisers only need pay a litter more money to attract more potential buyers.

Section 4.3 introduces the online evolution strategy method for tuning the policy networks based on online data. In this experiment, we evaluate the online performance changes in seven continuous days to confirm the performance increases brought by online learning method. To disturb strategy actions in $\pi_{\theta_{\pi}}(s)$ , we add a gaussian noise $G(0, \delta^2)$ with mean 0 and variance $\delta^2 = 0.01$ to the parameters $\theta_{\pi}$ of $\pi_{\theta_{\pi}}(s)$ . We split the traffic of the test bucket into a number of splits and apply each perturbed policy networks to one of them. The buckets and the user feedback history are collected from the data logs to compute the updates in Eq. (8). The average performance of the test bucket are shown in Fig. 8. As can be seen, all the three business metrics improves during the days. Compared with the baseline ranking function [13] (whose parameter stay unchanged during the days), the RPM grows from 2% to 4%, CTR grows from 2% to about 3%. The results indicate the effectiveness of the online updating method. We also find the PPC grows because there is no constraints added on it. In the future work, we will try to add constraints to limit PPC increase to generate more return for advertisers.

6 CONCLUSIONS

It is commonly accepted when building a commercial sponsored search platform, besides the intermediate platform revenue, the users’ engagement and the advertisers’ return are also important to the long-term profit of the commercial platform. In this work,

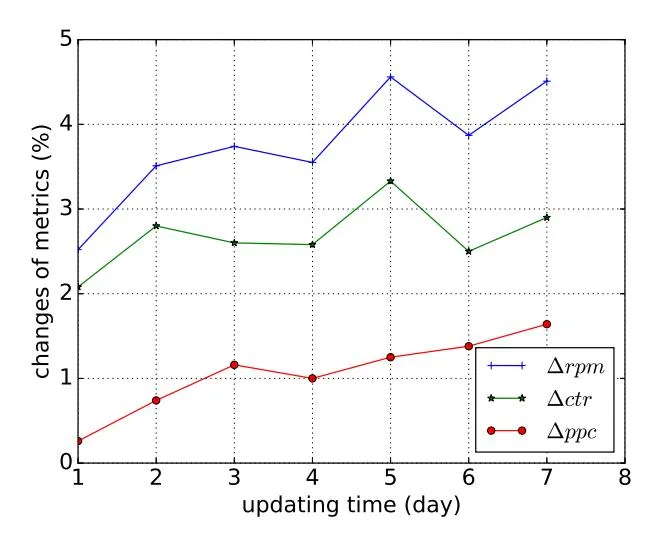

Figure 8: Experimental results illustrating the business metric changes during the online update of the proposed method in Section 4.3.

we design a new ranking function by incorporating these factors together. However, these additional terms increase the complexity of the ranking function. In this work, we propose a reinforcement learning framework to optimize the ranking function towards the optimal long-term profit of the platform. As is known, the reinforcement learning works in a trail-and-error manner. To allow adequate exploration without hurting the performance of the commercial platform, we propose to initialize the ranking function by an offline learning procedure conducted in a simulated sponsored search environment, followed by an online learning module which updates the model adaptively to online data distribution. Experimental results confirms the effectiveness of the proposed method.

In the future, we will focus on the following directions: (1) Sequential user behavior simulation. The environment simulation method introduced in Section 4.1 is limited to one time advertisement serving without considering the correlation between sequential user behaviors. We plan to try generative models like GAN [10] to model the continuous user behaviors. (2) The proposed method has the ability to improve advertisers’ return-per-cost by adding the purchase amount into the reward term. Due to traffic limitation, we did not investigate on this effect, in future work, we will increase the online testing traffic to measure the gain brought by adding the purchase amount reward.
